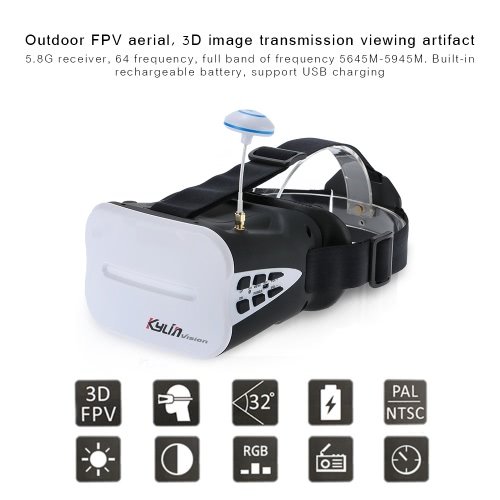

Features:
64CH, full band of frequency 5645M-5945M
High performance antenna, stable image transfer
5.8G receiving frequency, strong anti-interference ability and long transmission distance
Automatically search and scan frequency points to connect to the transmitter
Built-in rechargeable battery, support USB charging

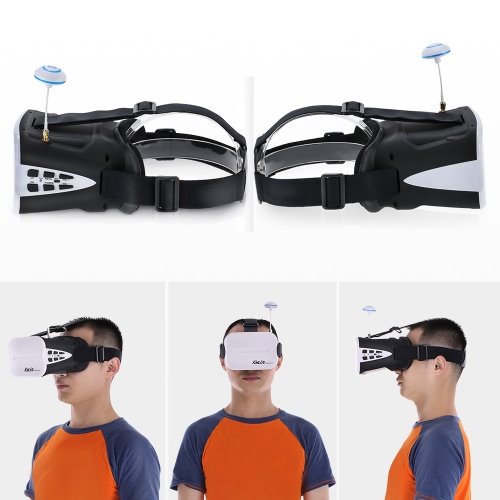

Ergonomic design, comfortable for long-term wearing
Specifications:
Brand: GoolRC
Frequency: 5.8G 64CH, Full-band 5645M-5945M
Display screen size: 5 inch
Working Voltage: 4.2V

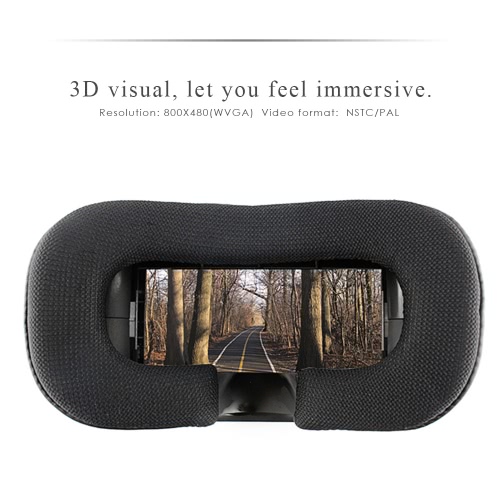

Resolution: 800X480(WVGA)
Brightness: 300cd/m2 (adjustable)
Contrast: Adjustable
Saturability: Adjustable
Sensitivity: -90dBm±1dBm
Antenna Interface: External thread(Internal thread internal pin antenna)1 x RP-SMA, 50 Ohm
Video format: NSTC/PAL
Audio: adjustable
Battery: 1S 2000mAH, USB Charge
Charging Voltage: DC 5V/ 1A;
Consumption: 300 mA
Dimension: 169 * 169 * 109mm
Item weight: 479g
There may be some deviation due to manual measurement.
Package information:
Package size: 22.2 * 21 * 11.8cm / 8.7 * 8.3 * 4.6in
Package weight: 811g /1.8lb
General box package
Notes：
The support frame is used for photo effects not included.
In order to protect the battery, please charge in time when the goggles in low battery status;
The goggles have electric consumption when under standby mode, please pull out the plug in case battery over discharged.
Digital English manual can be downloaded from KDS official website. Link as followed: //www.kdsmodel.com/p_en.php?id=487

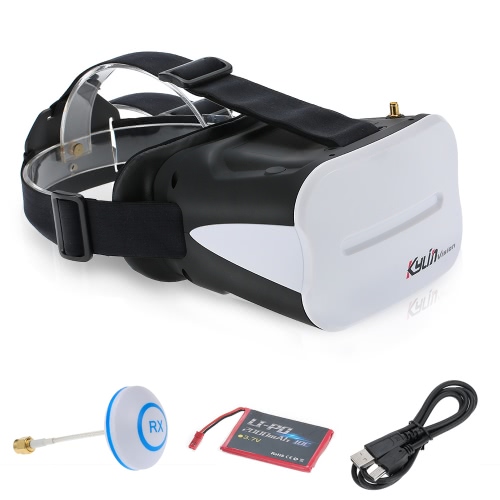

Package list:
1 * GoolRC FPV Goggles
1 * USB Charge Cable
1 * 3.7V 2000mAh 10C Li-po Battery
1 * Receiver Antenna
