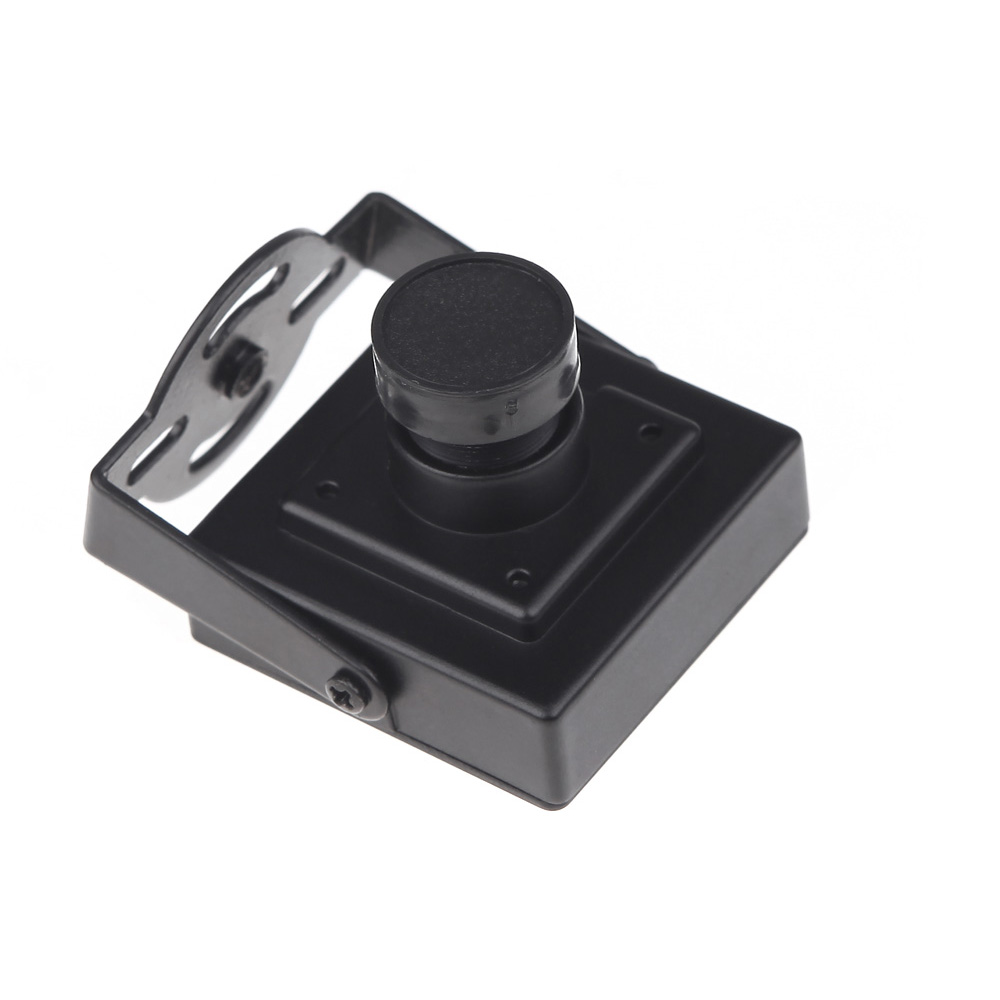

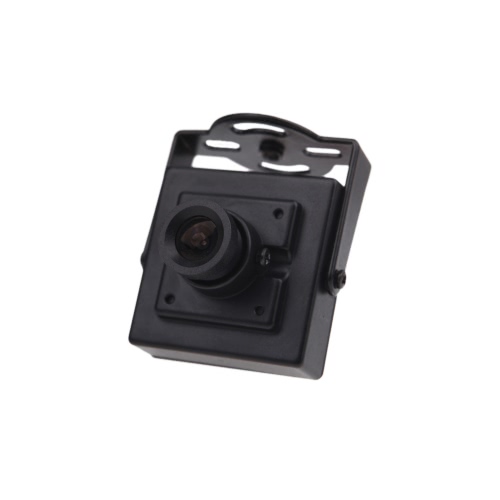

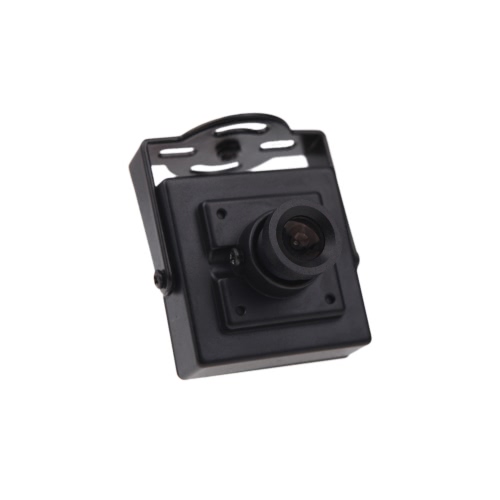

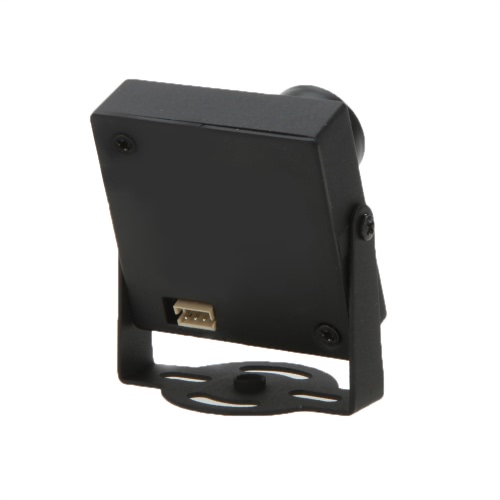

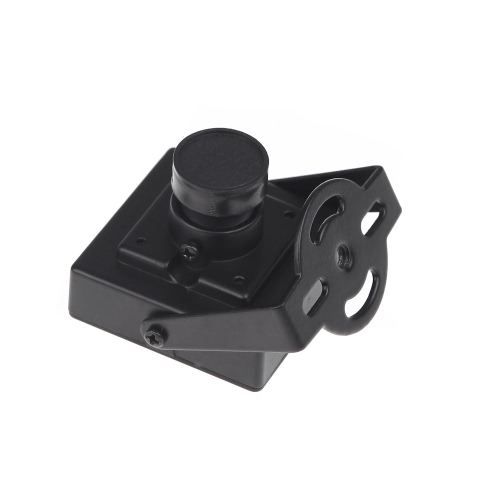

(EAN: 0701413959137) GoolRC 1/3" 700TVL PAL 3.6mm Mini CCD Camera for RC QAV250 F330 mini FPV Quadcopter Photography
- Overview
- FAQ
- Reviews
Features:
Enable aerial photography even for small wheelbase multicopter
ensuring high quality FPV effect
700VL 1/3'' Super HAD CCD Camera Lens
CCD type: HAD CCD II
Audio: can choose this mini mic for professional fpv photography
Specifications:
Sensor: 1/3" SONY CCD Sensor
Product name: 700 TVL
Size: 38mm * 38mm
Pixel: PAL:1020H * 596V
Effective picel: PAL: 512H×582V
Signal format: PAL
Resolution: 700TVL
Digital noise reduction: 2DNR,support 0-16 grade adjustment
Min lumen: 1.0Lux/F1.2
SNR: <=48dB
Video out put: 1.0Vp-p/75ohm
AGC (automatic gain control): 0.25/0.50/0.75/1.00 adjustable,max up to 55db
HLC High light compensation
Elsctronic Shutter: 1/50(1/60) - 1/100000 second
Gamma correction: 0.45/1.0
Lens: 3.6MM Glass lens
Voltage: DC12V+-5%
Working current: 70MA
Working temperature: -20℃--60℃
Package size: 10 * 7 * 6cm / 3.9 * 2.7 * 2.4in
Package weight: 92g / 3.2oz

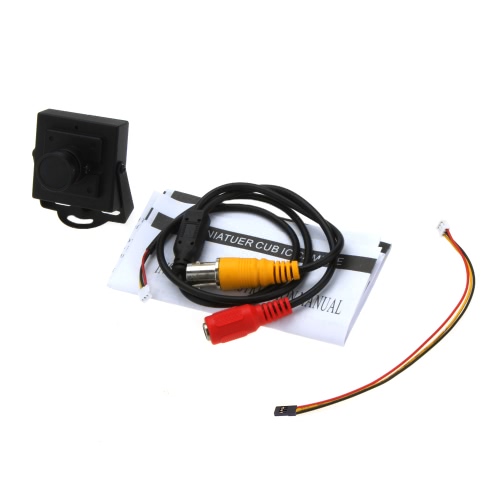

Package list:
1 * 1/3" Sony 700TVL PAL 3.6mm Mini CCD Camera
2 * Cable
1 * English user manual
